Chain Block CK Type
Competitive chain block CK type with industrial performance

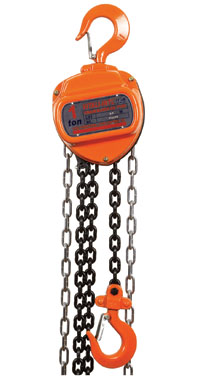

VITALI-INTL Chain Block CK

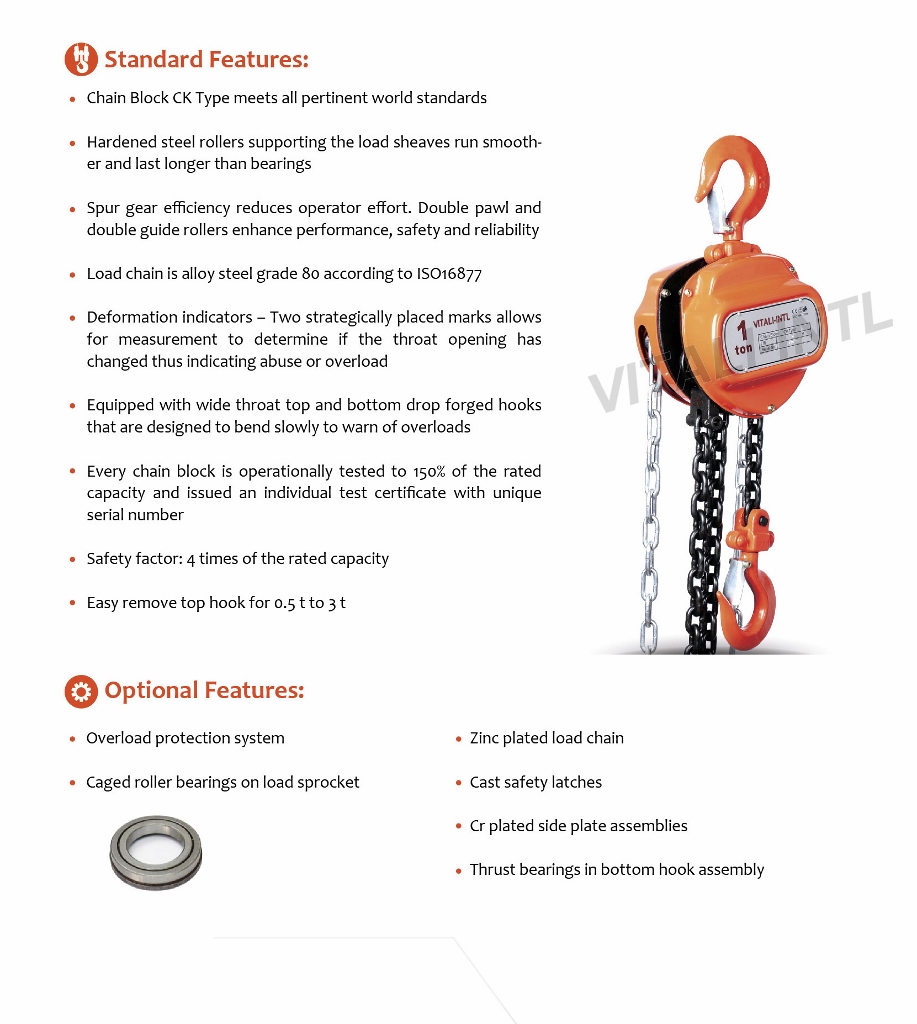

  • Chain Block CK Type meets all pertinent world standards.

  • Hardened steel rollers supporting the load sheaves run smoother and last longer than bearings

  • Spur gear efficiency reduces operator effort. Double pawl and double guide rollers enhance performance, safety and reliability.

  • Load chain is alloy steel grade 80 according to ISO 3077

  • Deformation indicators - Two strategically placed marks allows for measurement to determine if the throat opening has changed thus indicating abuse or overload

  • Equipped with wide throat top and bottom drop forged hooks that are designed to bend slowly to warn of overloads

  • Every VITALI-INTL chain block is operationally tested to 150% of the rated capacity and issued an individual test certificate with unique serial number

  • Safety factor: 4 times of the rated capacity



VITALI-INTL Chain Block CK
  • Caged roller bearings on load sprocket


  • Cr plated side plates

  • Galv. load chain

  • Cast latches

  • Overload protection system

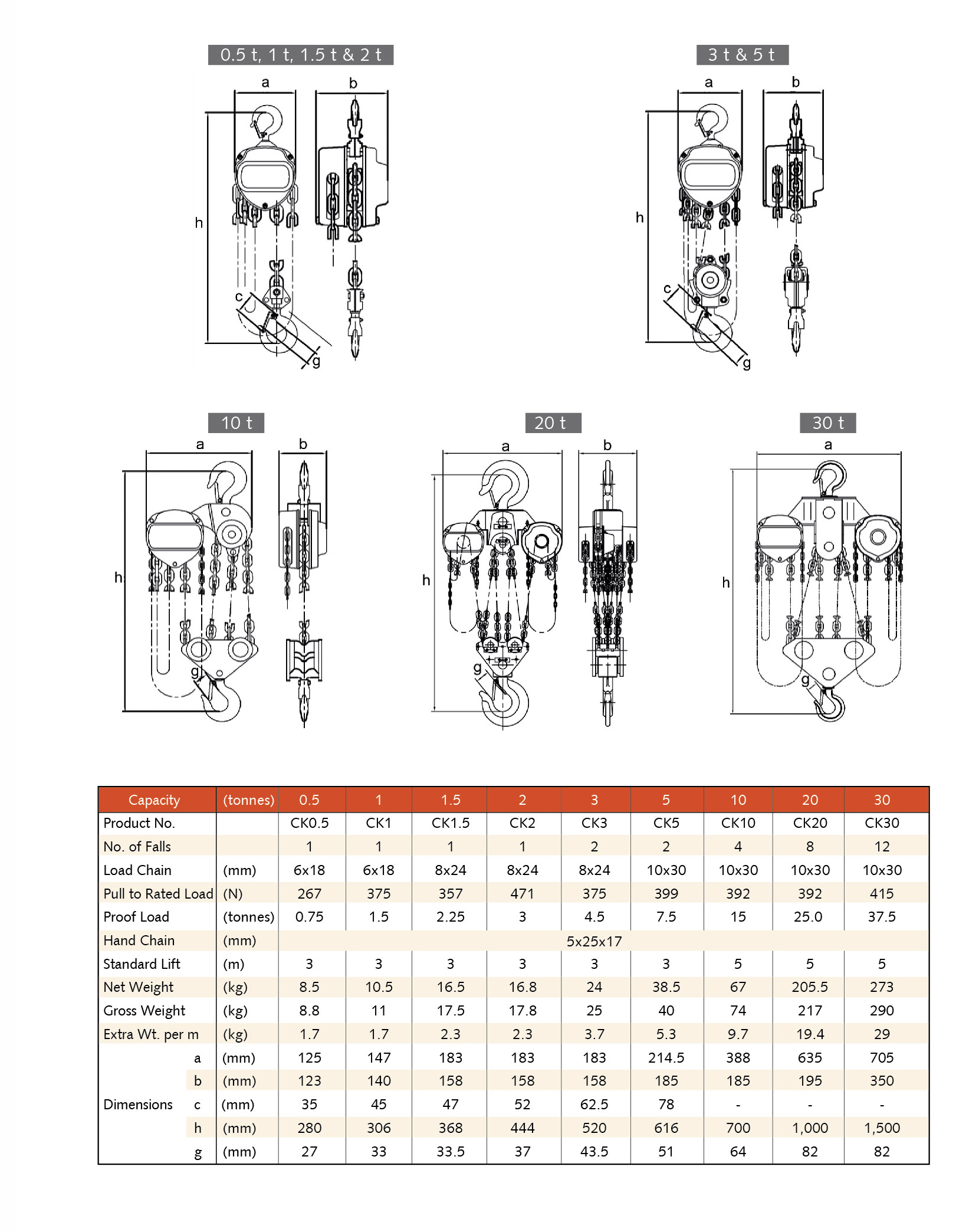

VITALI-INTL Chain Block CK Specifications

Please click the following link to download:
