Lever Hoist K-V Type
The Best Lever Hoist for Professional & Industrial Users

VITALI-INTL Lever Hoist K-V

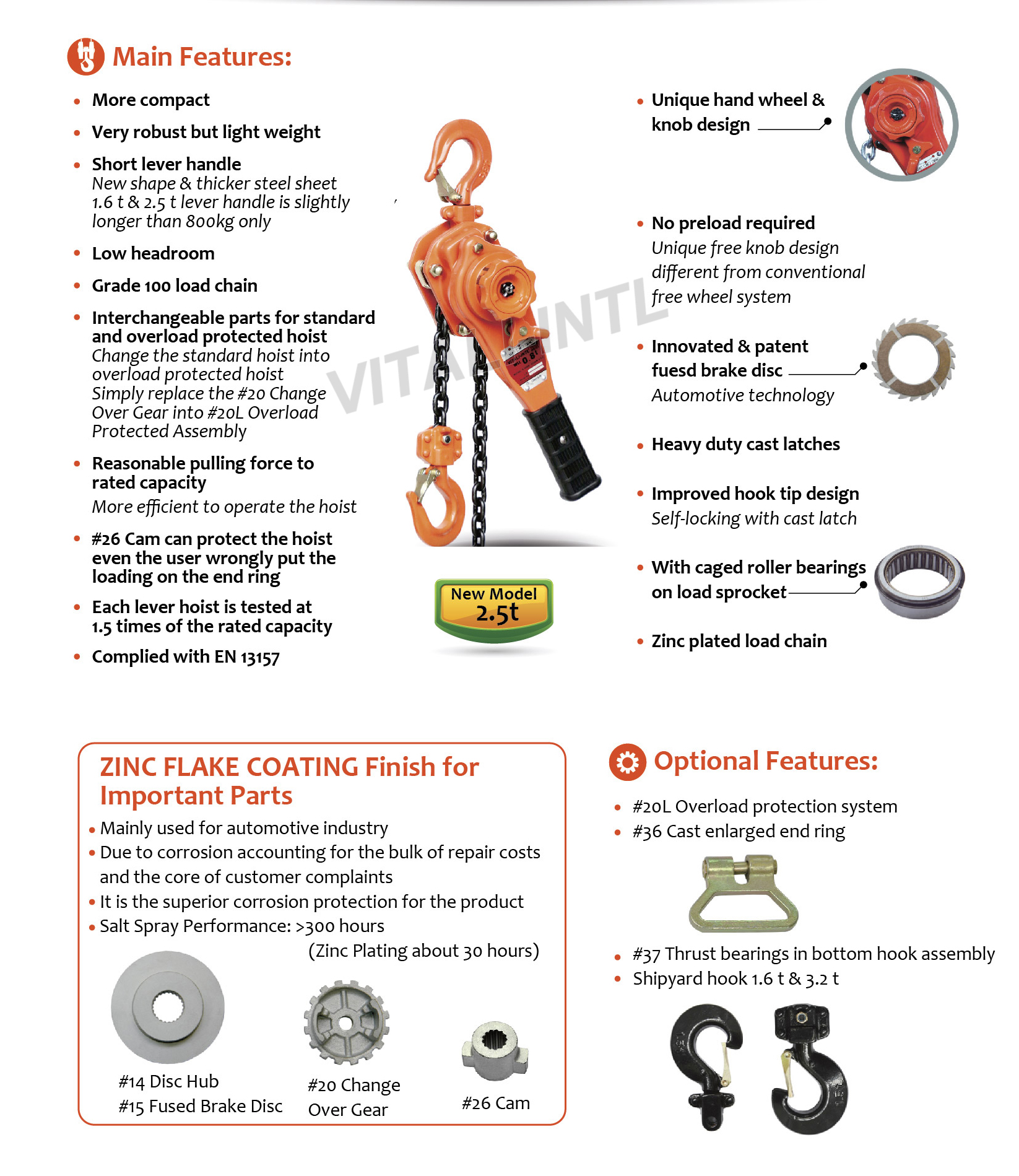

  • More compact

  • Short handle - New shape & thicker steel sheet

  • Very robust but light weight

  • Low head room

  • Grade 100 galvanized load chain

  • Complied with EN 13157

  • Each lever hoist is operationally tested at 1.5 times rated capacity

  • Unique Hand Wheel & Knob design
    Hand Wheel & Knob for VITALI-INTL Lever Hoist K-V

  • No preload required - unique free knob design (different from conventional free wheel system)

  • Innovated & Patent Friction Disc Design No brake discs required
    Friction Disc for VITALI-INTL Lever Hoist K-V

  • Heavy Duty Cast Latch

  • Improved Hook Tip Design self-locking with cast latch
    Hook Tip for VITALI-INTL Lever Hoist K-V

  • With Caged Roller Bearings on Load Sprocket


  • Phosphoric Surface Treatment for the Driving Shaft #3

  • Dacromat Finish for Important Parts

    - Ratchet Disc #15

    - Cam #26

    - Disc Hub #14
    Disc Hub for VITALI-INTL Lever Hoist K-V

    - Change Over Disc #20
    Change Over Disc for VITALI-INTL Lever Hoist K-V


    VITALI-INTL Lever Hoist K-V - CE & ISO

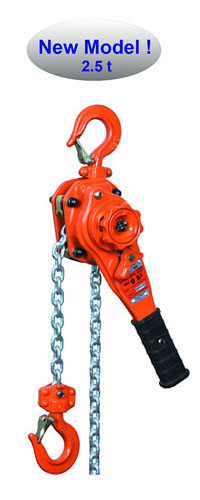

VITALI-INTL Lever Hoist K-V
  • Overload protection system #20L

  • Thrust bearings in bottom hook assembly

  • Enlarged End Ring #41

    Enlarged End Ring for VITALI-INTL Lever Hoist K-V

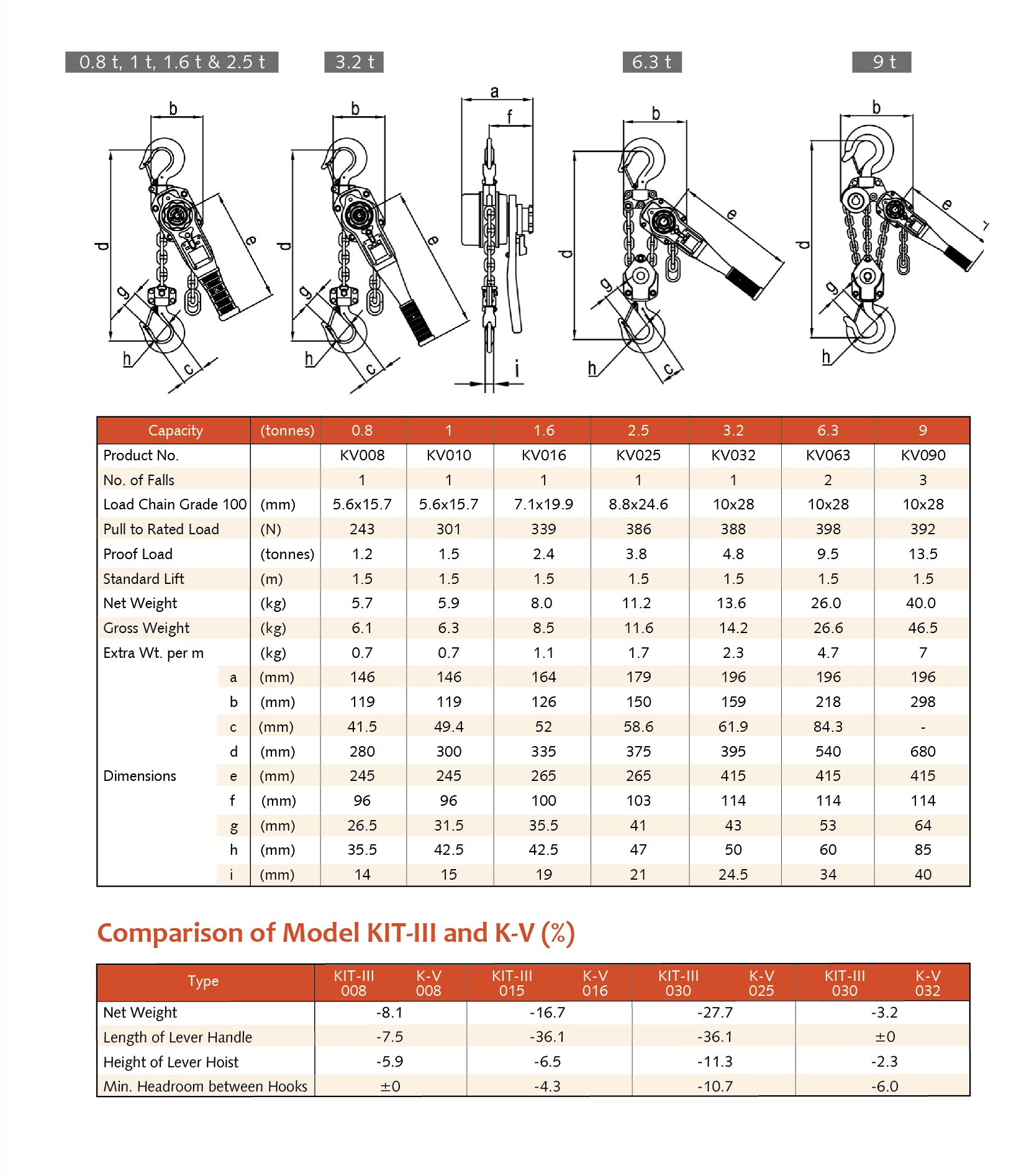

VITALI-INTL Lever Hoist K-V Specifications

Please click the following link to download:
