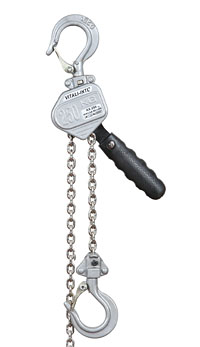

Lever Hoist KX Type
The smallest lever hoist in the world
|
- Aluminum alloy steel cover - The lightest weight in the world 1.5 kg only for 250 kg lever hoist
- Alloy steel side plate with heat treated - higher durability (the other lever hoists are made of carbon steel)
- The shortest handle - 140mm for 250 kg lever hoist
- Nickel plated load chain - Grade 80 or 100 (Customers can choose either one of them)
- More compact and durable - Load sprocket and the load gear are combined as an integral part of the 250 kg lever hoist
- Heavy duty carrying case - for 250 kg lever hoist
- Advanced gear reduction system - with 5 gears in the gear box (most of the other 250 kg lever hoist consists of 2 gears or without gear)
- Double Pawl - higher safety standard (the other 250 kg lever hoist is single pawl)
- 4 links load sprocket - more stable in lifting and longer life for the load chain, especially for the 250 kg hoist (the other 250 kg lever hoist has 3 links load sprocket)
- All the rotating parts are fitted with abrasion resistant bush
- All the main parts and gears are made of alloy steel and heat treated - More durable and longer life
- Li & MoS2 grease - Suitable to work in high & low temperature environment
- Long life brake discs
- Operational test - Each hoist is conducted an operational test at 150% of the rated capacity
- Endurance test - The hoist shall withstand 1,500 cycles with 110% of the rated capacity at least 300mm per cycle (most of the other hoists cannot pass the endurance test)
|
Please click the following link to download:
