Lever Hoist YAL Type
Competitive lever hoist YAL type with industrial performance

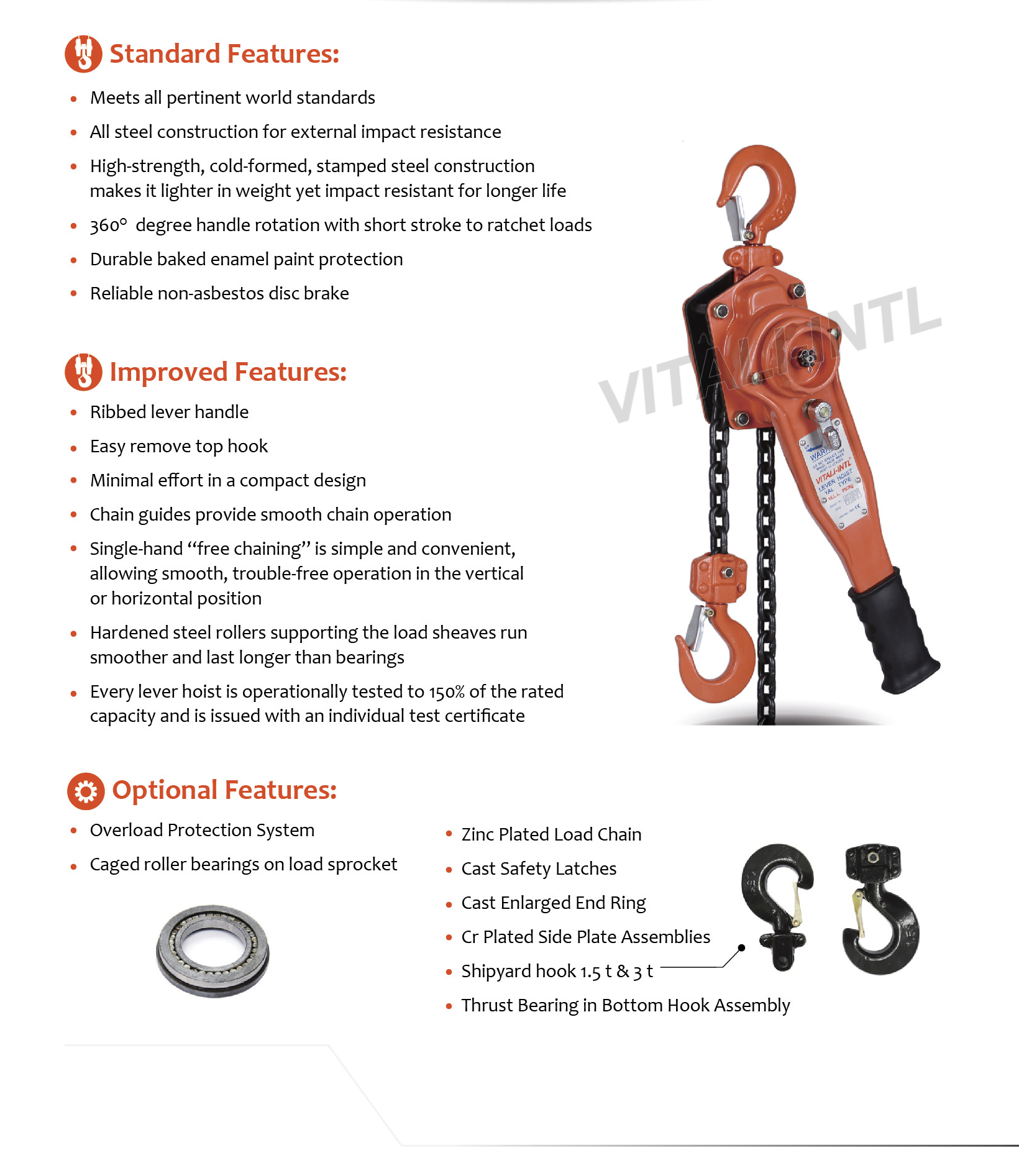

VITALI-INTL Lever Hoist YAL Standard Features:
  • Meets all pertinent world standards

  • All steel construction for external impact resistance

  • High-strength, cold-formed, stamped steel construction makes it lighter in weight yet impact resistant for longer life

  • 360° degree handle rotation with short stroke to ratchet loads

  • Durable baked enamel paint protection

  • Reliable non-asbestos disc brake


Improved Features:
  • Ribbed lever handle

  • Easy remove top hook

  • Minimal effort in a compact design

  • Chain guides provide smooth chain operation

  • Single-hand "free chaining" is simple and convenient, allowing smooth, trouble-free operation in the vertical or horizontal position

  • Hardened steel rollers supporting the load sheaves run smoother and last longer than bearings

  • Every lever hoist is operationally tested to 150% of the rated capacity and is issued with an individual test certificate

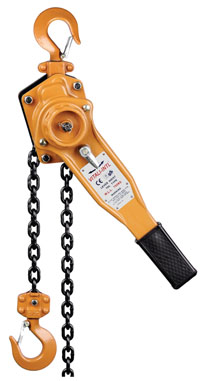

VITALI-INTL Lever Hoist YAL
  • Caged roller bearings on load sprocket
    Load sprocket for VITALI-INTL Lever Hoist YAL

  • Cr plated side plates

  • Galv. load chain

  • Cast latches

  • Overload protection system

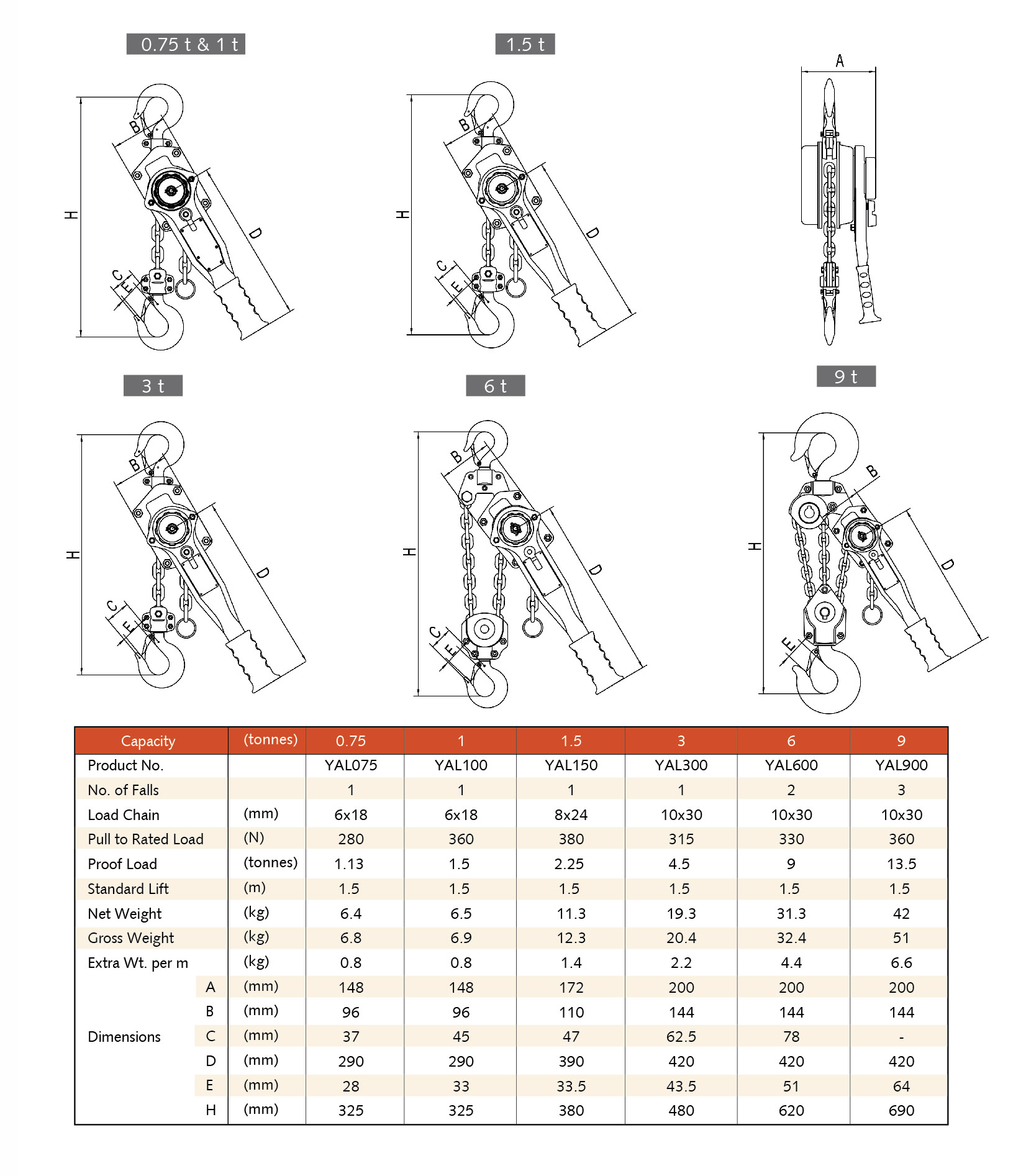

VITALI-INTL Lever Hoist YAL Specifications

Please click the following link to download:
