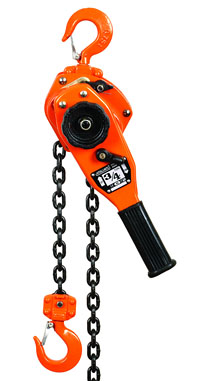

Lever Hoist VIT-II Type
A dependable lever hoist with capacities and features that make it ideal for all industrial lifting, pulling and position applications.
|

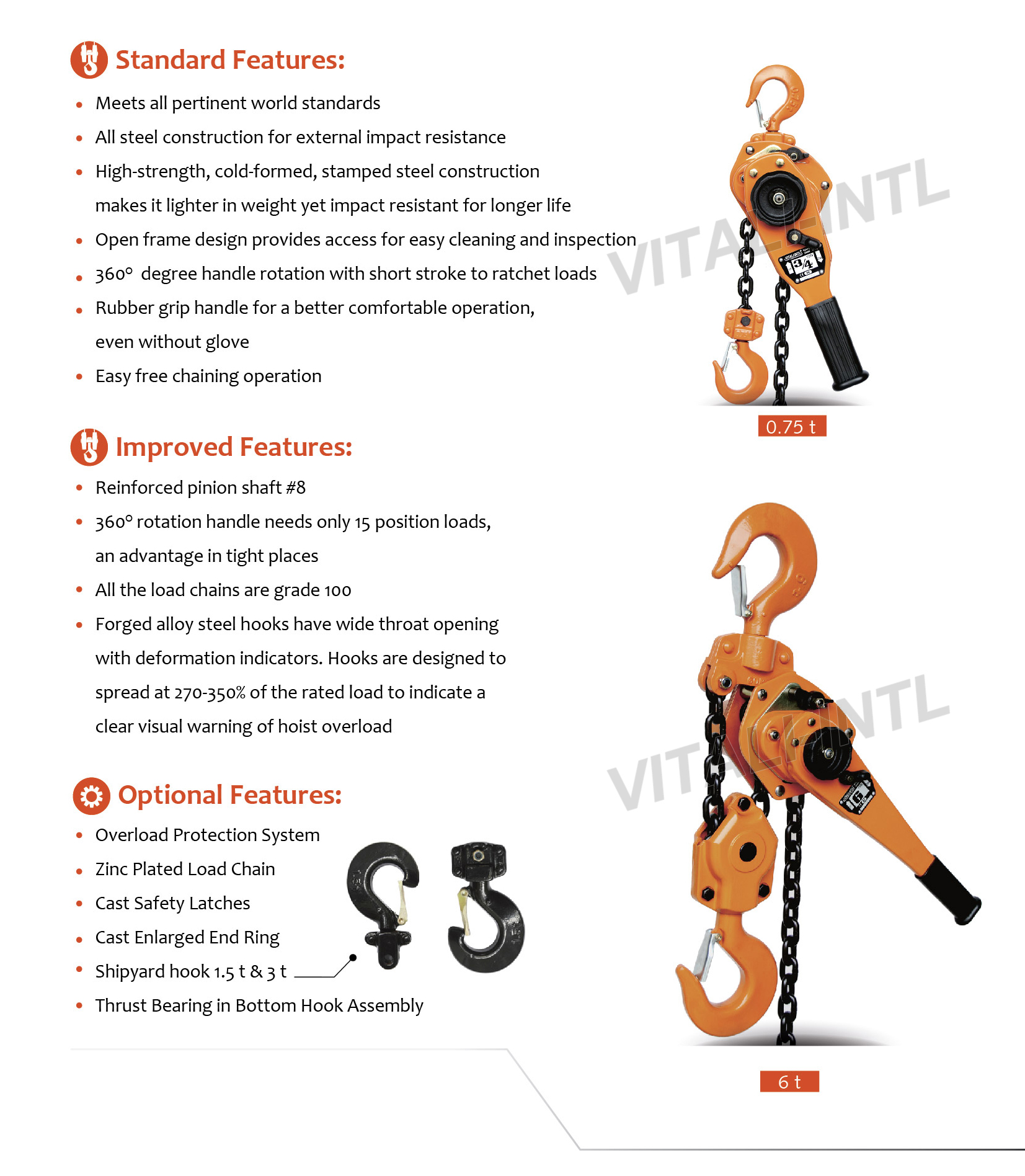

Standard Features
- Meets all pertinent world standards
- All steel construction for external impact resistance
- High-strength, cold-formed, stamped steel construction makes it lighter in weight yet impact resistant for longer life
- Open frame design provides access for easy cleaning and inspection
- 360° degree handle rotation with short stroke to ratchet loads
- Rubber grip handle for a better comfortable operation, even without glove
- Easy free chaining operation
Improved Features
- Reinforced pinion shaft #8
- 360° rotation handle needs only 15 position loads. A big plus in tight places
- Alloy steel load chain is induction welded and quenched for strength and endurance 1.5 t, 3 t & 6 t are using grade 100 chain
- Forged alloy steel hooks have wide throat opening with deformation indicators. Hooks are designed to spread at 270-350% of the rated load to indicate a clear visual warning of hoist overload
|
|
|
Optional Features
- Galv. load chain
- Cast latches
|
