Chain Block K-II Type
TOP-OF-THE-LINE CHAIN BLOCK

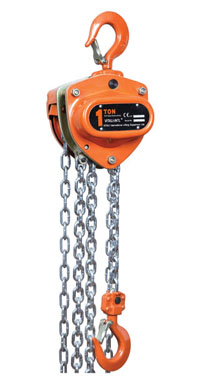

VITALI-INTL Chain Block K-II

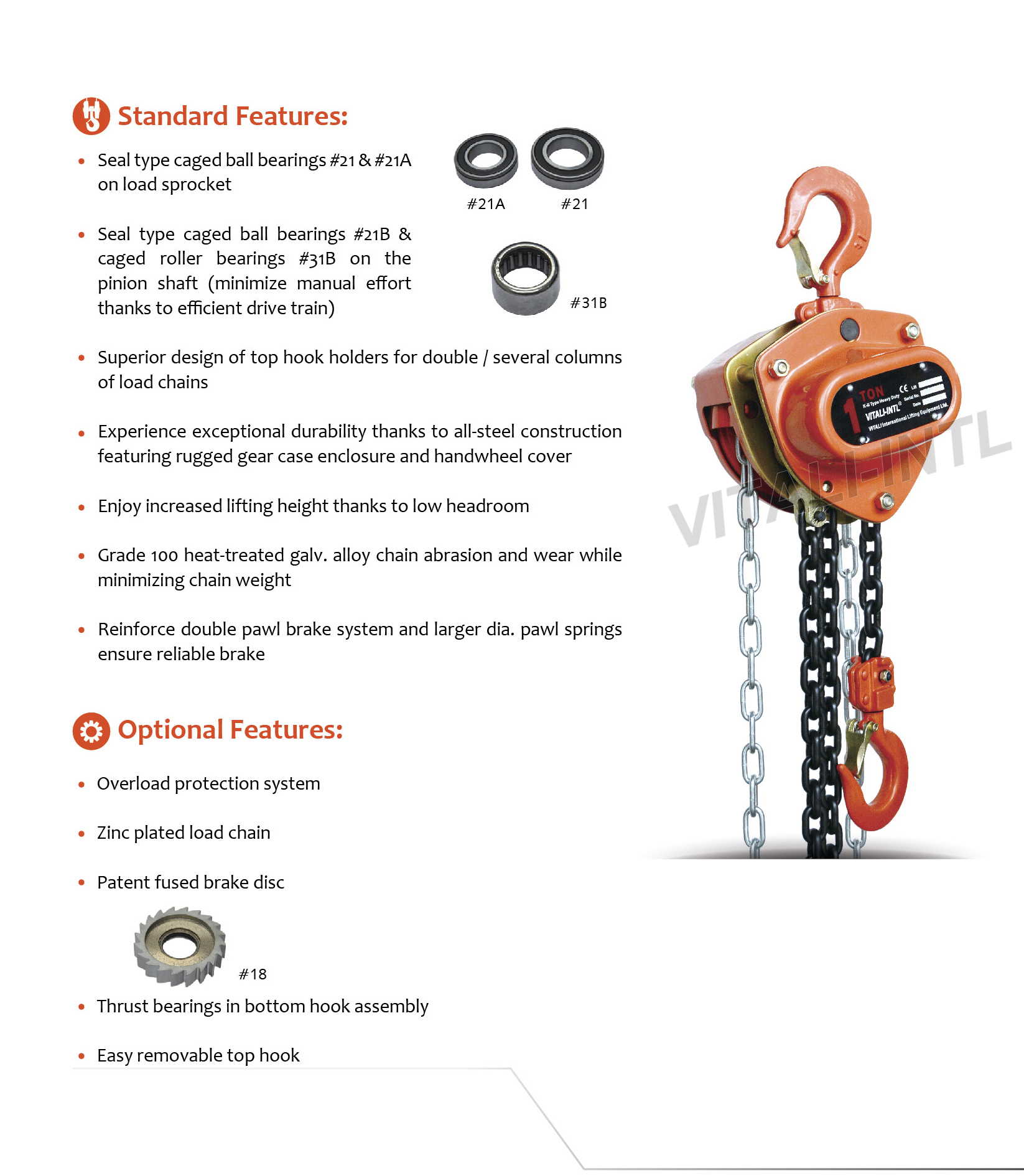

  • Seal type caged ball bearings on load sprocket
    Load Sprocket for Chain Block K-II

  • Seal type caged roller bearings on main shaft (Minimize manual effort thanks to efficient drive train)
    Main Shaft for Chain Block K-II

  • Superior design of top hook holders for double / several columns of load chains

  • Experience exceptional durability thanks to all-steel construction featuring rugged gear case enclosure and handwheel cover

  • Enjoy increased lifting height thanks to low headroom

  • Grade 100 heat-treated alloy load chain resists abrasion and wear while minimizing chain weight

  • Reinforced double pawl brake system and larger dia. pawl springs ensure reliable brake

    Chain Block K-II standard
VITALI-INTL Chain Block K-II
  • Overload protection system

  • Thrust bearings in bottom hook assembly

  • Galv. load chain

  • Innovated design of fused brake discs
    Fused brake discs for Chain Block K-II

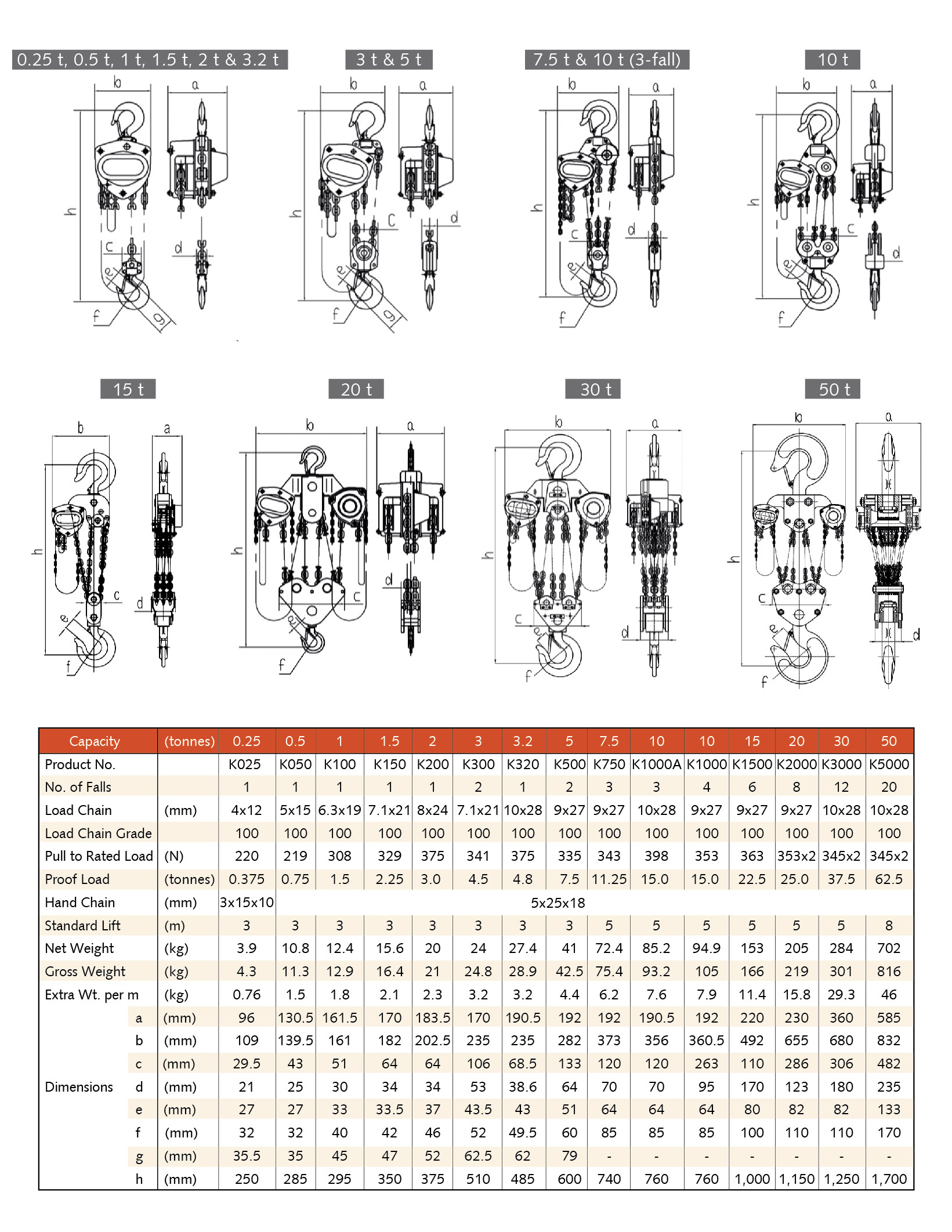

VITALI-INTL Chain Block K-II Specifications

Please click the following link to download:
